84r Linear Ceiling System

142.00 sq/ft

Ceiling System consists of round edge panels, 84mm panel weight and between the panels there is an opening of 16mm which can be remain open or can be closed or fitted with a 16mm wide joint profits (U shape) with U shape profile gives appearance like closed ceiling.

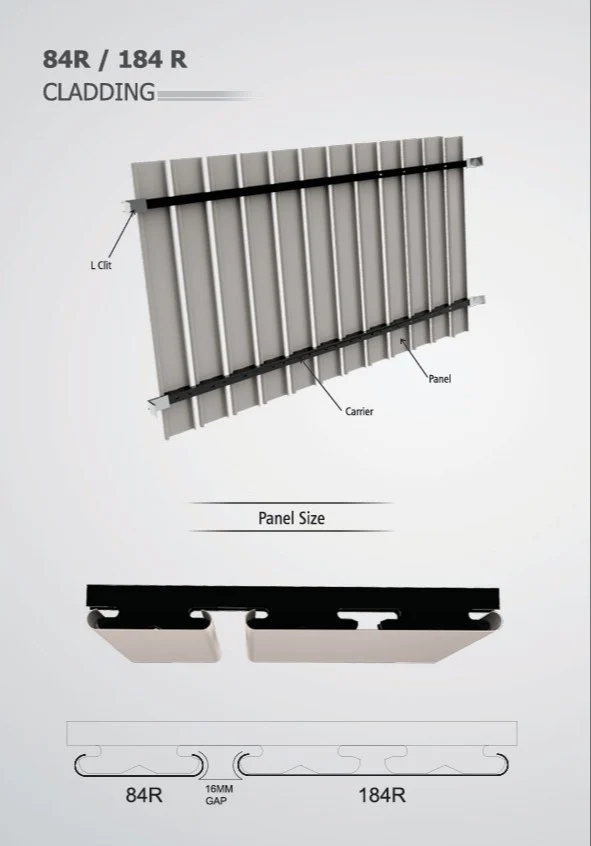

84R Panels are 15mm deep being its enameled steel/Al are recyclable and strong having 100mm module (84 & 16mm)

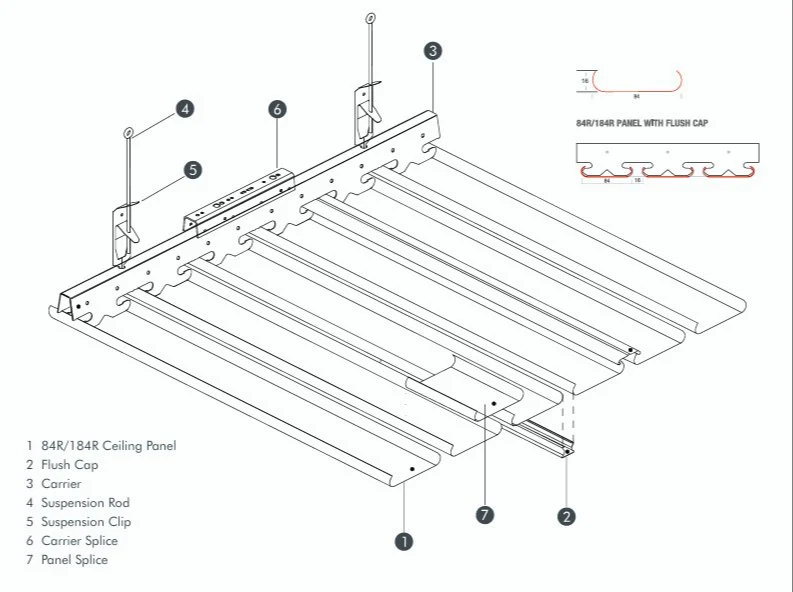

84 Carrier Made of 0.5mm thick enameled steel with accommodation the panels in a standard module of 100mm. Carriers have a standard length of 4mtrs.

Product Brochure

Category:

Description

Panel Width 84R
Material GI
Surface Finish Powder Coated
Thickness 0.50
Panel Length 3050
Panel Type U SHAPE
Application Area Corridor, Mall, Metro Station, Office, Lobby, Airport, Showroom
Surface Treatment Coated
Color Grey / Customized
Brand VINDSIL
Perforation Non Perforated
Acoustic Backing Without Fleece
Provide Installation Yes
Installation System Hook On
Country of Origin Made in India
Type Of False Ceiling Metal Ceiling
Usage/Application Office
City/Location PAN INDIA
Payment Mode Offline And Online
Service Offline
Minimum order quantity 2000 sq ft

84R Product Application

All the panels can be easily demountable and can be fixed again manually (without and advance coast) also allow the full access to the plenum and to the service behind.
Perforated paneled with a new noun textile membrane provide the acoustical

solution for conference access.
All kind of services i.e.- electric, HVAC, Cable Tray can be hide by using

this kind of ceiling system.
Ideal for those area where consider a minimum maintenance area etc.
