₹136.00 sq/ft

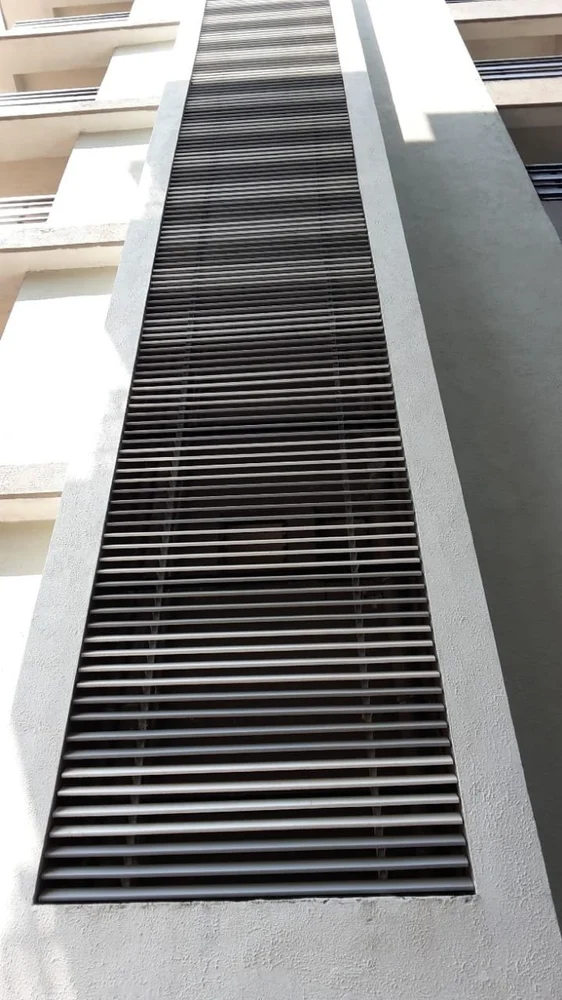

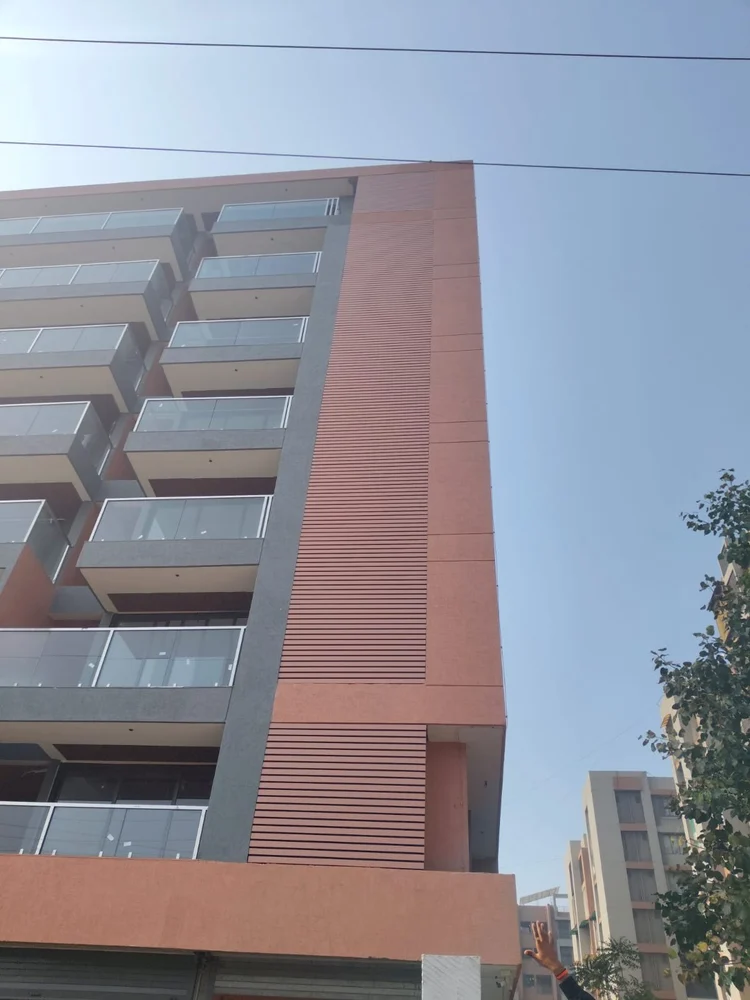

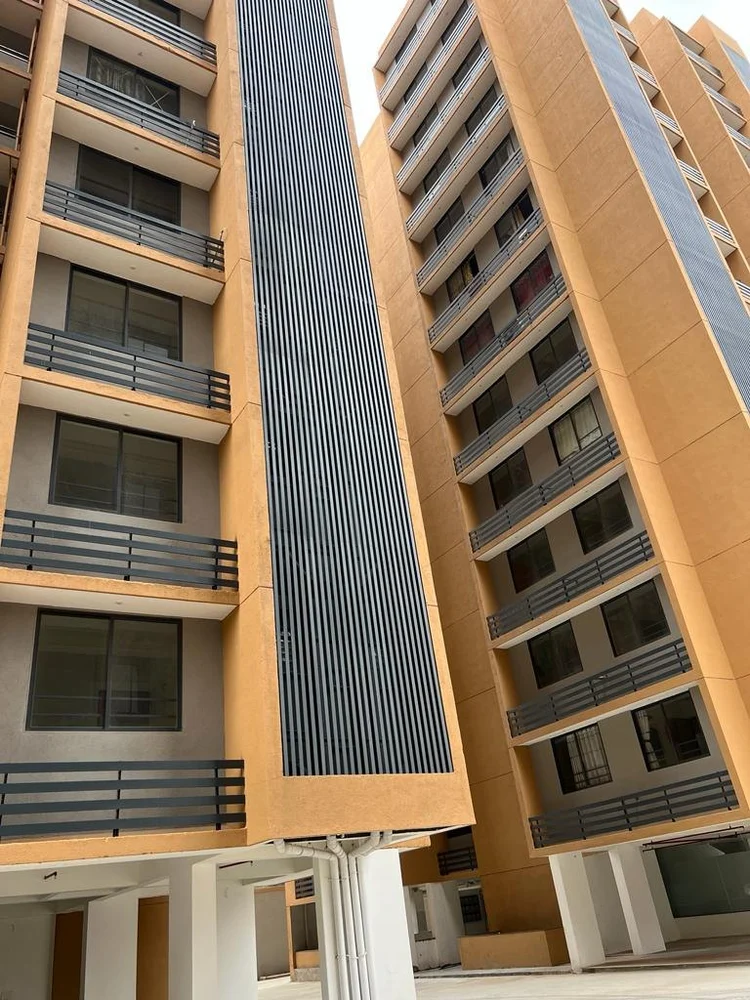

U-shaped Louvers are an extremely versatile and easily assembled exterior cladding system that can be installed horizontally or vertically. It is an inexpensive yet durable solution for exterior cladding. The unique special powder coat finish on the panel is unaffected by dirt and moisture. It comes in different shapes, colors, materials, technology.
25mmx25mmx25mm
25mmx50mmx25mm
25mmx75mmx25mm
50mmx25mmx50mm
50mmx50mmx50mm
(Carriers are available in multiple of 25mm Gap)
Panels Detail
50mm / 150mm / 125mm wide, length up to 3mtr, Galvanized Steel 0.5mm & Aluminum 0.65mm
Carrier
Various gap, 25nnm/50mm/75mm/10 0mm made of Galvanized Steel 0.6mm thick stove enameled/coil coated black
Paint Finish
Special high quality surface with corrosion resistive super durable powder coating, have properties capable of meeting the severe requirement of exterior applications, preferred with visible & rear both side powder coated.
Installation Details
L Clit, L Angle, Aluminium Box Pipe, corrosion & weather resistive screws and other components if required for structure.
| Specification | Details |
| Metal Type | GI |
| Usage/Application | Residencial / Commercial |
| Design/Pattern | U shape |
| Sheet Thickness | 0.50 mm |
| Profile Type | U shape Panel |
| Louver Type | Hinged |
| Panel Type | U shape Panel |
| Material | Galvanized Steel |
| Technique | Cold Rolled |
| Packaging Type | Box Packing |
| Corrosion Resistance | Yes |
| Service on | Yes |
| Minimum order quantity | 1000 sq ft |
