₹160.00 sq/ft

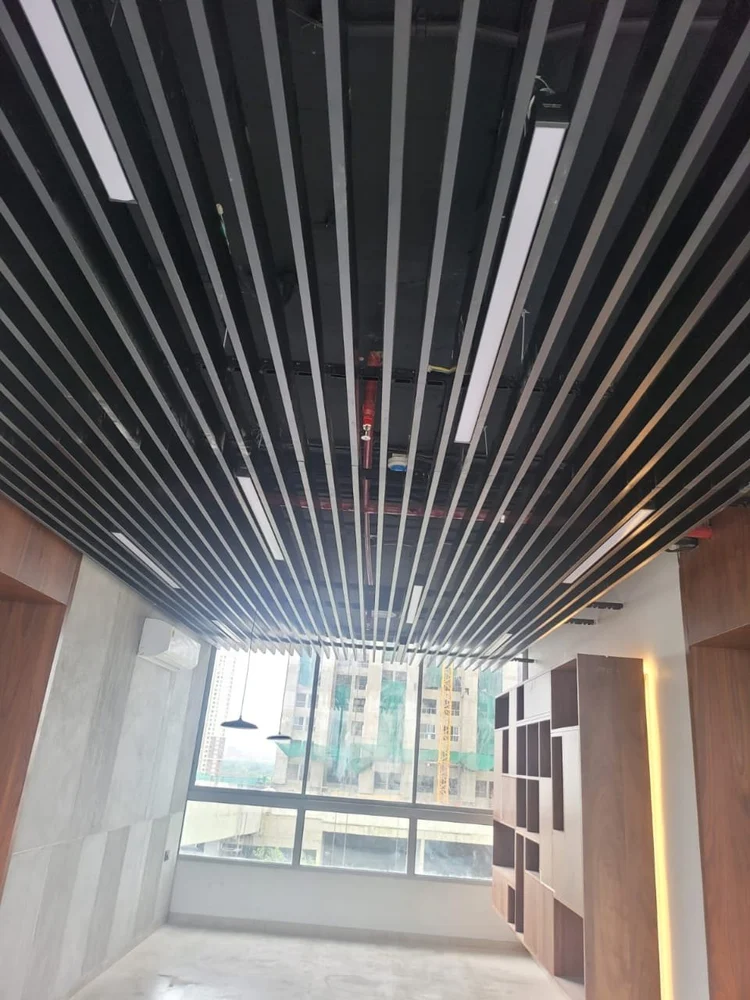

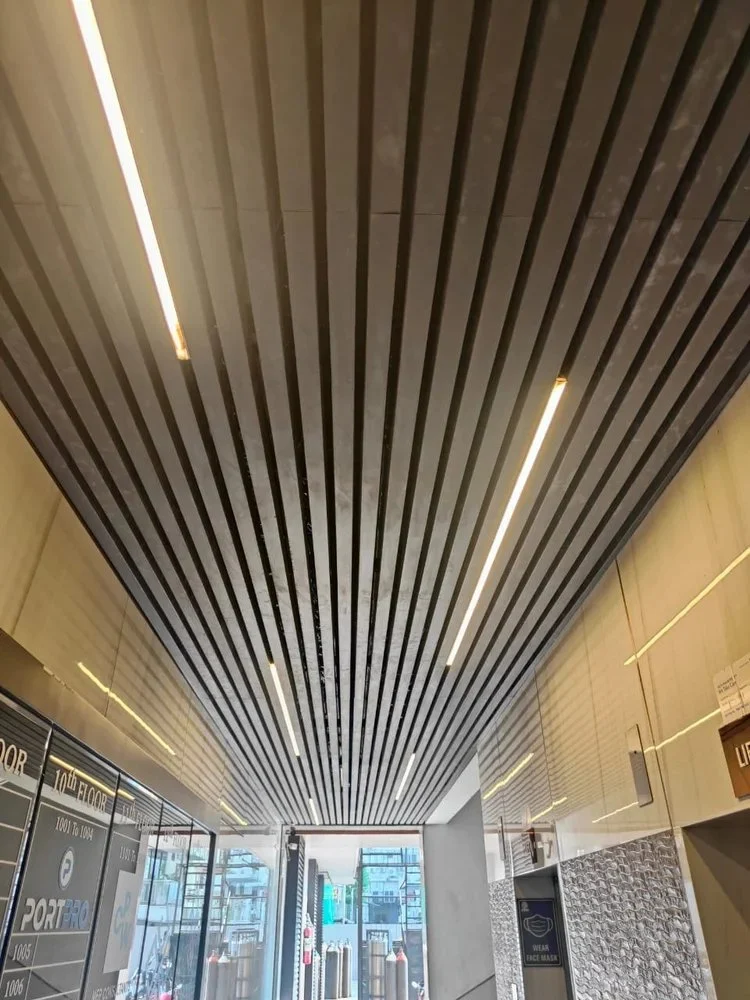

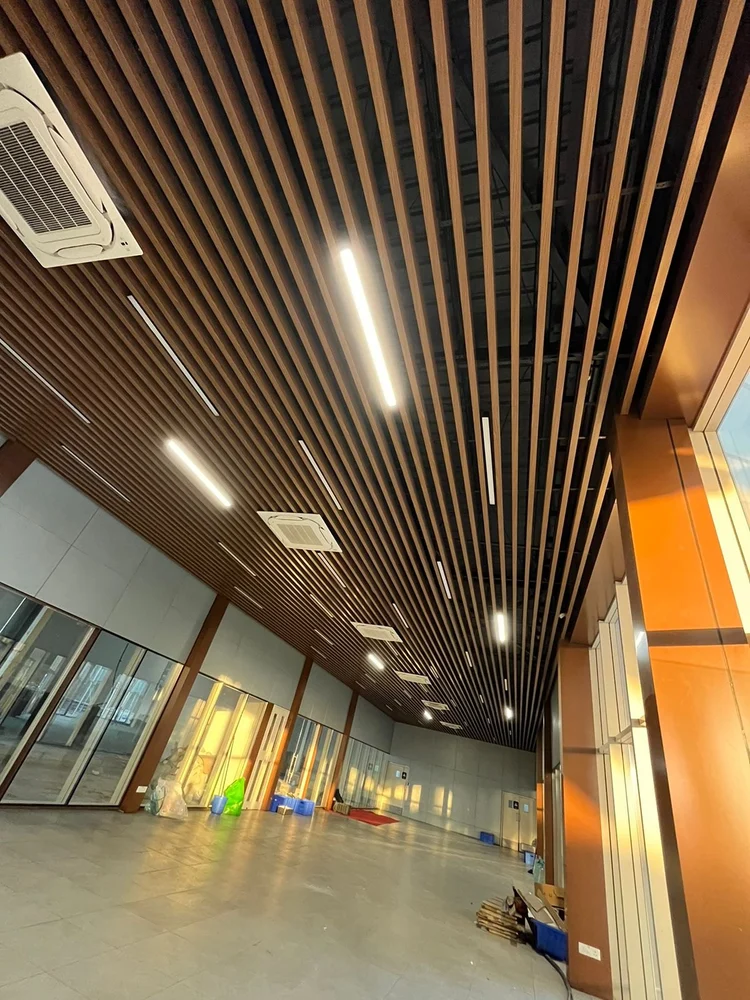

U-Shaped Baffle Ceiling are an easily installable and extremely versatile interior ceiling system. It can be installed horizontally or vertically according to the requirement. With an extensive variety of shapes, colors, materials & finishes, this system offers endless design & utility choices. Price-effective yet hugely durable for external cladding.
Material
Galvanized Steel 0.5mm & Aluminium 0.65mm
Panels
50mm / 150mm / 125mm wide, 50 mm / 100mm deep, length up to 3mtr. Galvanized Steel 0.5mm / 0.45mm & 0.65mm Aluminium -TCT.
Carrier
Various Gap, 25mm / 50mm / 75mm / 100mm made of Galvanized Steel 0.5mm thick stove enameled black.
Paint Finish
55 microns thick powder coating on exposed surface or 25 microns polyester coil coated over primer on visible surface with primer coat on rear side.
Suspension
Height Adjustment Spring Steel Big clip, 4mm dia GS Rod, Panel Coupler, Carrier Coupler, GS / Aluminium Edge ProFile.
| Specification | Details |
| Material | Aluminium |
| Usage/Application | Sound Absorbers |
| Thickness | 0.50 & 0.65 |
| Country of Origin | Made in India |
| Finish | Polished |
| Features | Tamper Proof, Durable Coating |
| Usage of panel | U Shape Baffle Ceiling- Fixed Length |
| Brand | Vindsil |
| Minimum order quantity | 1000 sq ft |
